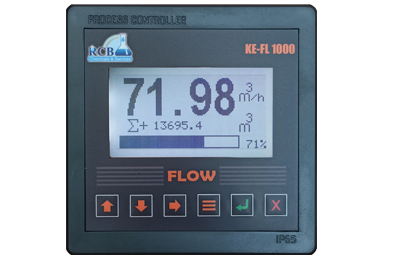

Flow Controller KE - FL 1000


INTRODUCTION
FL 1000 Series Controller is a microprocessor-based Control System used to measure and control Flow parameter in a variety of water/fluid applications. FL 1000 also provides totalizer function for the flow parameter, It requires K-Factor values for sensor and specified flow values.

FL 1000 series is simple to operate through its 6-buttons control. The Backlit LCD display contrast can be adjusted as required. It has 4 types of measuring units as per requirement.

APPLICATIONS
• REVERSE OSMOSIS
• BOILER WATER
• COOLING WATER
• CLOSED LOOP SYSTEM
• DRINKING WATER
• TEXTILES WATER
• WASTE WATER











×

Description


INTRODUCTION
FL 1000 Series Controller is a microprocessor-based Control System used to measure and control Flow parameter in a variety of water/fluid applications. FL 1000 also provides totalizer function for the flow parameter, It requires K-Factor values for sensor and specified flow values.

FL 1000 series is simple to operate through its 6-buttons control. The Backlit LCD display contrast can be adjusted as required. It has 4 types of measuring units as per requirement.

APPLICATIONS
• REVERSE OSMOSIS
• BOILER WATER
• COOLING WATER
• CLOSED LOOP SYSTEM
• DRINKING WATER
• TEXTILES WATER
• WASTE WATER

×
Specifications Descriptions
Measuring Range (Flow) Unit: m ³/hr (0 – 99999)
Unit: liter/min (0 – 99999)
Unit: US gallon/min (0 – 99999)
Unit: Imperial gallon/min (0 – 99999)
Accuracy +/- 0.5%
Totalizer 0 – 99999 units
Measuring Units m ³/hr
liter/min
US gallon/min
Imperial gallon/min
Calibration Mode User Input ( k-factor )
Analog Output 1 4-20mA corresponding to flow, +/- 0.1mA accuracy, 0.1mA resolution, maximum load 500Ω/td>

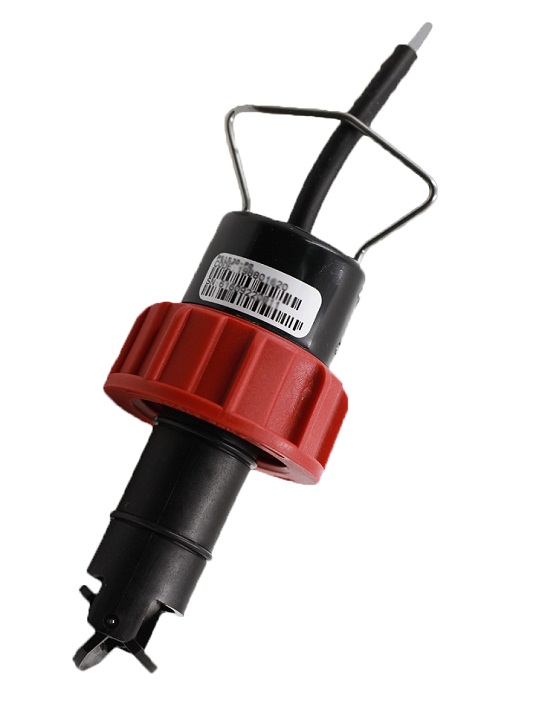

Sensor Type Paddle Wheel (Rotor Type)
Relays 1 (HI) – 200 VDC, 0.5A – On/Off Programmable
2 (LO) – 200 VDC, 0.5A – On/Off Programmable
Display Large Graphical LCD (128x64) with adjustable Contrast and Adjustable Backlight
Dimensions (Volume Based) L x W x D (113.5mm x 113.5mm x 83mm)
Mounting Type Panel Mount
Panel Cutout Size L x W (93mm x 93mm)
Power Requirement +12 - 24 VDC (maximum up to 35 VDC)
Weight (Assembly) ≈ 255 Grams
IP Class Protection IP 65

×
